You will need to download the weblog_entries.txt dataset from the Packt website http://www.packtpub.com/support.

Complete the following steps to create a new folder in HDFS and copy the weblog_entries.txt file from the local filesystem to HDFS:

When copying a file from HDFS to the local filesystem, keep in mind the space available on the local filesystem and the network connection speed. It's not uncommon for HDFS to have file sizes in the range of terabytes or even tens of terabytes. In the best case scenario, a ten terabyte file would take almost 23 hours to be copied from HDFS to the local filesystem over a 1-gigabit connection, and that is if the space is available!

The Hadoop shell commands are a convenient wrapper around the HDFS FileSystem API. In fact, calling the hadoop shell script and passing it the fs option sets the Java application entry point to the org.apache.hadoop.fs.FsShell class. The FsShell class then instantiates an org.apache.hadoop.fs.FileSystem object and maps the filesystem's methods to the fs command-line arguments. For example, hadoop fs –mkdir /data/weblogs, is equivalent to FileSystem.mkdirs(new Path("/data/weblogs")). Similarly, hadoop fs –copyFromLocal weblog_entries.txt /data/weblogs is equivalent to FileSystem.copyFromLocal(new Path("weblog_entries.txt"), new Path("/data/weblogs")). The same applies to copying the data from HDFS to the local filesystem. The copyToLocal Hadoop shell command is equivalent to FileSystem.copyToLocal(new Path("/data/weblogs/weblog_entries.txt"), new Path("./weblog_entries.txt")). More information about the FileSystem class and its methods can be found on its official Javadoc page: http://hadoop.apache.org/docs/r0.20.2/api/org/apache/hadoop/fs/FileSystem.html.

The mkdir command takes the general form of hadoop fs –mkdir PATH1 PATH2. For example, hadoop fs –mkdir /data/weblogs/12012012 /data/weblogs/12022012 would create two folders in HDFS: /data/weblogs/12012012 and /data/weblogs/12022012, respectively. The mkdir command returns 0 on success and -1 on error:

hadoop fs –mkdir /data/weblogs/12012012 /data/weblogs/12022012

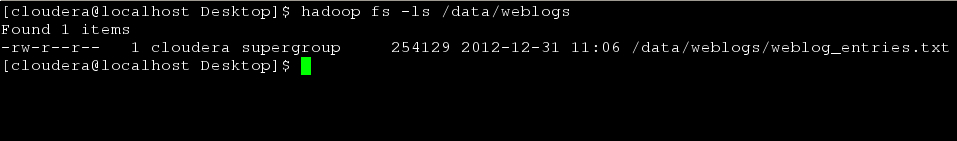

hadoop fs –ls /data/weblogs

The copyFromLocal command takes the general form of hadoop fs –copyFromLocal LOCAL_FILE_PATH URI. If the URI is not explicitly given, a default is used. The default value is set using the fs.default.name property from the core-site.xml file. copyFromLocal returns 0 on success and -1 on error.

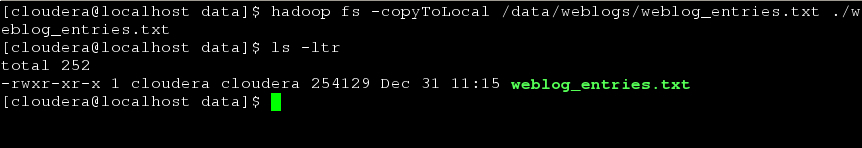

The copyToLocal command takes the general form of hadoop fs –copyToLocal [-ignorecrc] [-crc] URI LOCAL_FILE_PATH. If the URI is not explicitly given, a default is used. The default value is set using the fs.default.name property from the core-site.xml file. The copyToLocal command does a Cyclic Redundancy Check (CRC) to verify that the data copied was unchanged. A failed copy can be forced using the optional –ignorecrc argument. The file and its CRC can be copied using the optional –crc argument.

The command put is similar to copyFromLocal. Although put is slightly more general, it is able to copy multiple files into HDFS, and also can read input from stdin.

The get Hadoop shell command can be used in place of the copyToLocal command. At this time they share the same implementation.

When working with large datasets, the output of a job will be partitioned into one or more parts. The number of parts is determined by the mapred.reduce.tasks property which can be set using the setNumReduceTasks() method on the JobConf class. There will be one part file for each reducer task. The number of reducers that should be used varies from job to job; therefore, this property should be set at the job and not the cluster level. The default value is 1. This means that the output from all map tasks will be sent to a single reducer. Unless the cumulative output from the map tasks is relatively small, less than a gigabyte, the default value should not be used. Setting the optimal number of reduce tasks can be more of an art than science. In the JobConf documentation it is recommended that one of the two formulae be used:

0.95 * NUMBER_OF_NODES * mapred.tasktracker.reduce.tasks.maximum

Or

1.75 * NUMBER_OF_NODES * mapred.tasktracker.reduce.tasks.maximum

For example, if your cluster has 10 nodes running a task tracker and the mapred.tasktracker.reduce.tasks.maximum property is set to have a maximum of five reduce slots, the formula would look like this 0.95 * 10 * 5 = 47.5. Since the number of reduce slots must be a nonnegative integer, this value should be rounded or trimmed.

The JobConf documentation provides the following rationale for using these multipliers at http://hadoop.apache.org/docs/current/api/org/apache/hadoop/mapred/JobConf.html#setNumReduceTasks(int):

The partitioned output can be referenced within HDFS using the folder name. A job given the folder name will read each part file when processing. The problem is that the get and copyToLocal commands only work on files. They cannot be used to copy folders. It would be cumbersome and inefficient to copy each part file (there could be hundreds or even thousands of them) and merge them locally. Fortunately, the Hadoop shell provides the getmerge command to merge all of the distributed part files into a single output file and copy that file to the local filesystem.

The following Pig script illustrates the getmerge command:

weblogs = load '/data/weblogs/weblog_entries.txt' as
                (md5:chararray,
                  url:chararray,
                  date:chararray,
                  time:chararray,
                  ip:chararray);

md5_grp = group weblogs by md5 parallel 4;

store md5_grp into '/data/weblogs/weblogs_md5_groups.bcp';

The Pig script can be executed from the command line by running the following command:

pig –f weblogs_md5_group.pig

This Pig script reads in each line of the weblog_entries.txt file. It then groups the data by the md5 value. parallel 4 is the Pig-specific way of setting the number of mapred.reduce.tasks. Since there are four reduce tasks that will be run as part of this job, we expect four part files to be created. The Pig script stores its output into /data/weblogs/weblogs_md5_groups.bcp.

Notice that weblogs_md5_groups.bcp is actually a folder. Listing that folder will show the following output:

Within the /data/weblogs/weblogs_md5_groups.bcp folder, there are four part files: part-r-00000, part-r-00001, part-r-00002, and part-r-00003.

The getmerge command can be used to merge all four of the part files and then copy the singled merged file to the local filesystem as shown in the following command line:

hadoop fs –getmerge /data/weblogs/weblogs_md5_groups.bcp weblogs_md5_groups.bcp

Listing the local folder we get the following output:
