In this recipe, we will learn about two key configuration hyperparameters of CNN, which are strides and padding. Strides are used mainly to reduce the size of the output volume. Padding is another technique that lets us preserve the dimensions of the input volume in the output volume, thus enabling us to extract the low-level features efficiently.

Strides: Stride, in very simple terms, means the step of the convolution operation. Stride specifies the amount by which filters convolve around the input. For example, if we specify the value of stride argument as 1, that means the filter will shift one unit at a time over the input matrix.

Strides can be used for multiple purposes, primarily the following:

• To avoid feature overlapping
• To achieve smaller spatial dimensionality of the output volume

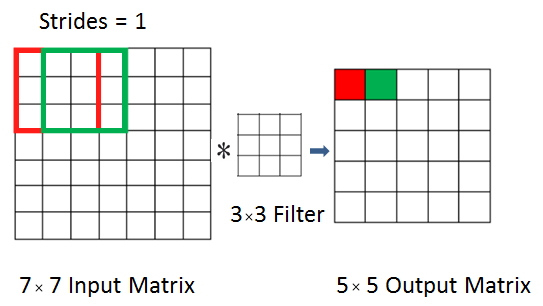

In the following diagram, you can see an example of a convolution operation on a 7 × 7 input data with a filter size of a 3 × 3 and a stride of 1:

Padding: For better modeling performance, we need to preserve the information about the low-level features of the input volume in the early layers of the network. As we keep applying convolutional layers, the size of the output volume decreases faster. Also, the pixels at corners of the input matrix are traversed a lesser number of times, compared to the pixels in the middle of the input matrix, which leads to throwing away a lot of the information near the edge of the image. To avoid this, we use zero padding. Zero padding symmetrically pads the input volume with zeros around the border.

There are two types of padding:

• Valid: If we specify valid padding, our convolutional layer is not going to pad anything around the input matrix and the size of the output volume will keep decreasing on adding layers.

• Same: This pads the original input with zeros around the edges of the input matrix before we convolve it so that the output size is the same size as the input size.

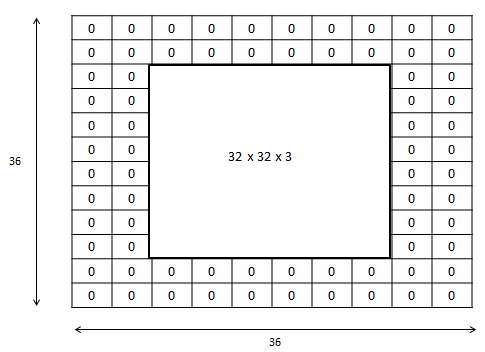

In the following screenshot, we can see a pictorial representation of zero padding:

Now that we are aware of the concepts of strides and padding, let's move further to the implementation part.

cnn_model_sp <- keras_model_sequential() %>%
 layer_conv_2d(filters = 8, kernel_size = c(4,4), activation = 'relu',
 input_shape = c(28,28,1),
 strides = c(2L, 2L),,padding = "same") %>%
 layer_conv_2d(filters = 16, kernel_size = c(3,3), activation = 'relu') %>%
 layer_flatten() %>%
 layer_dense(units = 16, activation = 'relu') %>%
 layer_dense(units = 10, activation = 'softmax')

Let's look at the summary of the model:

cnn_model_sp %>% summary()

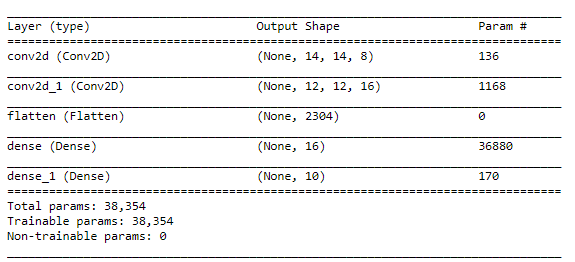

The following screenshot shows the details about the model created:

# loss function
loss_entropy <- function(y_pred, y_true) {
 loss_categorical_crossentropy(y_pred, y_true)
 }

# Compile model
cnn_model_sp %>% compile(
 loss = loss_entropy,
 optimizer = optimizer_sgd(),
 metrics = c('accuracy')
)

# Train model
cnn_model_sp %>% fit(
 x_train, y_train,
 batch_size = 128,
 epochs = 5,
 validation_split = 0.2
)

Let's evaluate the performance of the model on the test data and print the evaluation metrics:

scores <- cnn_model_sp %>% evaluate(x_test,
 y_test,
 verbose = 0
 )

Now we print the model loss and accuracy on the test data:

# Output metrics
paste('Test loss:', scores[[1]], '\n')
paste('Test accuracy:', scores[[2]], '\n')

We can see that the model's accuracy on test data is around 78%:

We can see that the model did a good job in the classification task.

In the previous recipe, Introduction to convolution operation, we built a simple CNN model. Apart from filter size and the number of filters, there are two more parameters of a convolution layer that can be configured for better feature extraction, and these are strides and padding. In step 1, we passed a vector of two integers (width and height), specifying the strides of the convolution along the width and height. The padding argument takes two values, valid, and same, with valid meaning no padding, and same means that the input and output sizes remain the same. Next, we printed a summary of the model.

The output shape and number of trainable parameters of a convolutional layer can be given by the following formula:

• Output shape: If the input to our convolutional layer is  and we apply  filters of  and  strides and  padding, then the output shape is given by the following formula:

• The number of parameters in each layer is calculated as follows:

In step 2, we defined the loss function of our model, then compiled and trained it. We then tested the model's performance on the testing dataset and printed the model's loss and accuracy.
