The rise of Docker and the trend of microservices

Before we start looking into Kubernetes, it's important to understand the growth of microservices and containerization. With the evolution of a monolithic application, developers face inevitable problems as the applications evolve:

• Scaling: A monolith application is difficult to scale. It's been proven that the proper way to solve a scalability problem is via a distributed method.
• Operational cost: The operation cost increases with the complexity of a monolith application. Updates and maintenance require careful analysis and enough testing before deployment. This is the opposite of scalability; you can't scale down a monolithic application easily as the minimum resource requirement is high.
• Longer release cycle: The maintenance and development barrier is significantly high for monolith applications. For developers, when there is a bug, it takes a lot of time to identify the root cause in a complex and ever-growing code base. The testing time increases significantly. Regression, integration, and unit tests take significantly longer to pass with a complex code base. When the customer's requests come in, it takes months or even a year for a single feature to ship. This makes the release cycle long and impacts the company's business significantly.

This creates a huge incentive to break down monolithic applications into microservices. The benefits are obvious:

• With a well-defined interface, developers only need to focus on the functionality of the services they own.
• The code logic is simplified, which makes the application easier to maintain and easier to debug. Furthermore, the release cycle of microservices has shortened tremendously compared to monolithic applications, so customers do not have to wait for too long for a new feature.

When a monolithic application breaks down into many microservices, it increases the deployment and management complexity on the DevOps side. The complexity is obvious; microservices are usually written in different programming languages that require different runtimes or interpreters, with different package dependencies, different configurations, and so on, not to mention the interdependence among microservices. This is exactly the right time for Docker to come into the picture.

Let's look at the evolution of Docker. Process isolation has been a part of Linux for a long time in the form of Control Groups (cgroups) and namespaces. With the cgroup setting, each process has limited resources (CPU, memory, and so on) to use. With a dedicated process namespace, the processes within a namespace do not have any knowledge of other processes running in the same node but in different process namespaces. With a dedicated network namespace, processes cannot communicate with other processes without a proper network configuration, even though they're running on the same node.

Docker eases process management for infrastructure and DevOps engineers. In 2013, Docker as a company released the Docker open source project. Instead of managing namespaces and cgroups, DevOps engineers manage containers through Docker engine. Docker containers leverage these isolation mechanisms in Linux to run and manage microservices. Each container has a dedicated cgroup and namespaces.

The interdependency complexity remains. Orchestration platforms are ones that try to solve this problem. Docker also offered Docker Swarm mode (later renamed Docker Enterprise Edition, or Docker EE) to support clustering containers, around the same time as Kubernetes.

Kubernetes adoption status

According to a container usage report conducted in 2019 by Sysdig (https://sysdig.com/blog/sysdig-2019-container-usage-report), a container security and orchestration vendor says that Kubernetes takes a whopping 77% share of orchestrators in use. The market share is close to 90% if OpenShift (a variation of Kubernetes from Red Hat) is included:

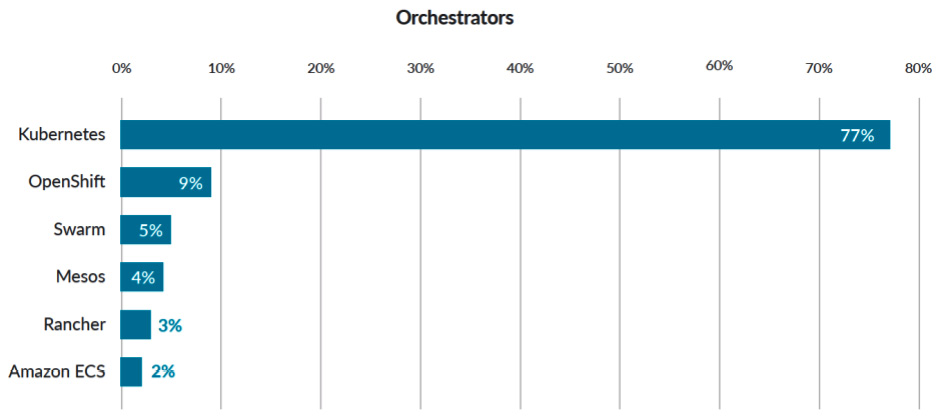

Figure 1.1 – The market share of orchestration platforms

Although Docker Swarm was released around the same time as Kubernetes, Kubernetes has now become the de facto choice of platform for container orchestration. This is because of Kubernetes' ability to work well in production environments. It is easy to use, supports a multitude of developer configurations, and can handle high-scale environments.

Kubernetes clusters

A Kubernetes cluster is composed of multiple machines (or Virtual Machines (VMs)) or nodes. There are two types of nodes: master nodes and worker nodes. The main control plane, such as kube-apiserver, runs on the master nodes. The agent running on each worker node is called kubelet, working as a minion on behalf of kube-apiserver, and runs on the worker nodes. A typical workflow in Kubernetes starts with a user (for example, DevOps), who communicates with kube-apiserver in the master node, and kube-apiserver delegates the deployment job to the worker nodes. In the next section, we will introduce kube-apiserver and kubelet in more detail:

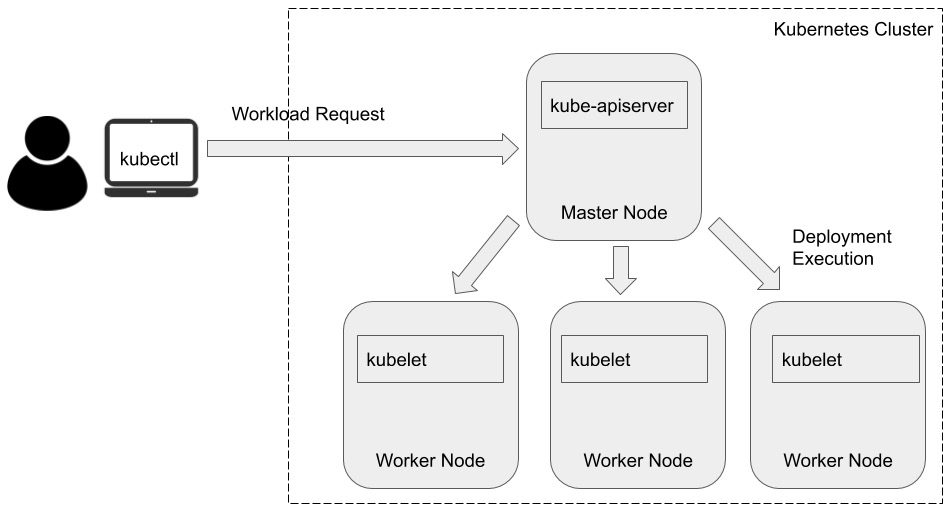

Figure 1.2 – Kubernetes deployment

The previous diagram shows how a user sends a deployment request to the master node (kube-apiserver) and kube-apiserver delegates the deployment execution to kubelet in some of the worker nodes.
