Kubernetes components

Kubernetes follows a client-server architecture. In Kubernetes, multiple master nodes control multiple worker nodes. Each master and worker has a set of components that are required for the cluster to work correctly. A master node generally has kube-apiserver, etcd storage, kube-controller-manager, cloud-controller-manager, and kube-scheduler. The worker nodes have kubelet, kube-proxy, a Container Runtime Interface (CRI) component, a Container Storage Interface (CRI) component, and so on. We will go through each of them in detail now:

• kube-apiserver: The Kubernetes API server (kube-apiserver) is a control-plane component that validates and configures data for objects such as pods, services, and controllers. It interacts with objects using REST requests.
• etcd: etcd is a high-availability key-value store used to store data such as configuration, state, and metadata. The watch functionality of etcd provides Kubernetes with the ability to listen for updates to configuration and make changes accordingly.
• kube-scheduler: kube-scheduler is a default scheduler for Kubernetes. It watches for newly created pods and assigns pods to the nodes. The scheduler first filters a set of nodes on which the pod can run. Filtering includes creating a list of possible nodes based on available resources and policies set by the user. Once this list is created, the scheduler ranks the nodes to find the most optimal node for the pod.

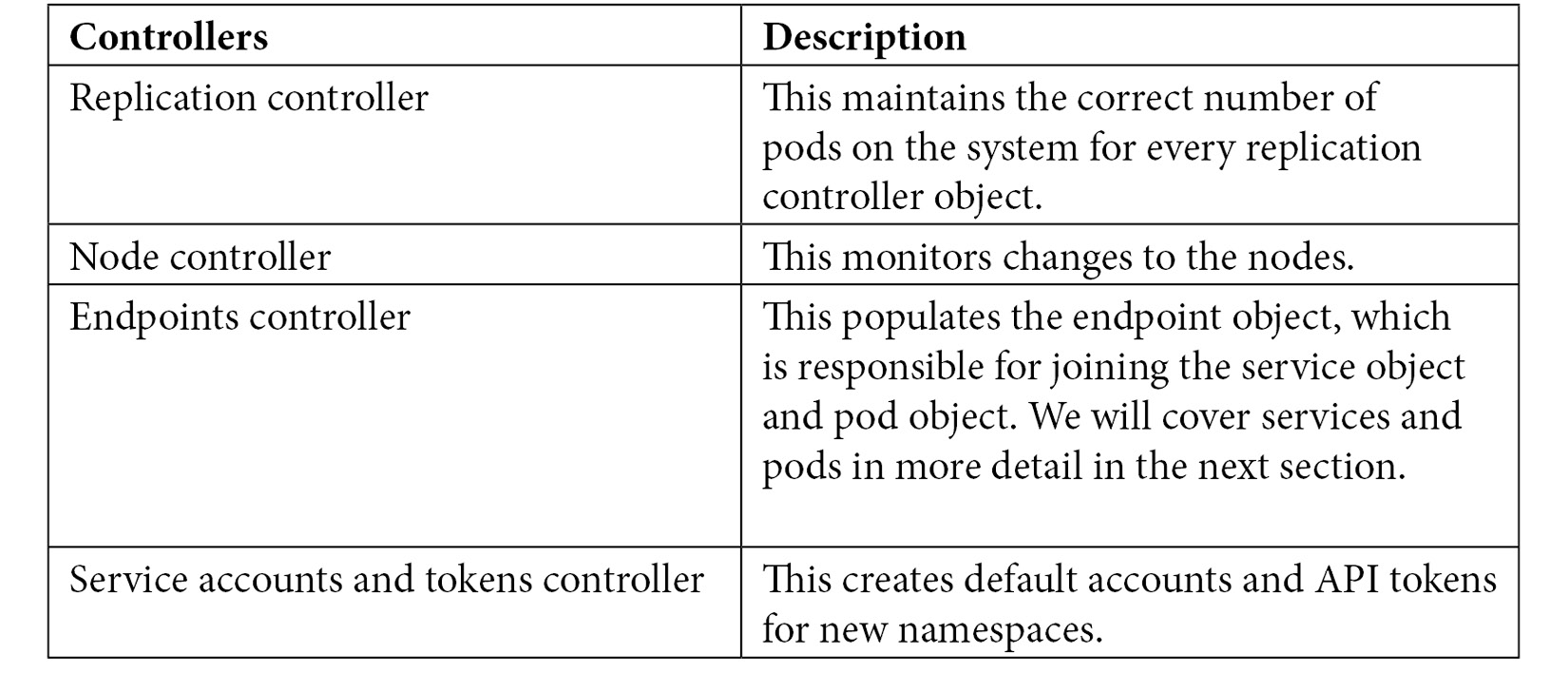

• kube-controller-manager: The Kubernetes controller manager is a combination of the core controllers that watch for state updates and make changes to the cluster accordingly. Controllers that currently ship with Kubernetes include the following:

• cloud-controller-manager: The cloud container manager was introduced in v1.6; it runs controllers to interact with the underlying cloud providers. This is an attempt to decouple the cloud vendor code from the Kubernetes code.
• kubelet: kubelet runs on every node. It registers the node with the API server. kubelet monitors pods created using Podspecs and ensures that the pods and containers are healthy.
• kube-proxy: kube-proxy is a networking proxy that runs on each node. It manages the networking rules on each node and forwards or filters traffic based on these rules.
• kube-dns: DNS is a built-in service launched at cluster startup. With v1.12, CoreDNS became the recommended DNS server, replacing kube-dns. CoreDNS uses a single container (versus the three used for kube-dns). It uses multithreaded caching and has in-built negative caching, thus being superior to kube-dns in terms of memory and performance.

In this section, we looked at the core components of Kubernetes. These components will be present in all Kubernetes clusters. Kubernetes also has some configurable interfaces that allow clusters to be modified to suit the organizational needs.

The Kubernetes interfaces

Kubernetes aims to be flexible and modular, so cluster administrators can modify the networking, storage, and container runtime capabilities to suit the organization's requirements. Currently, Kubernetes provides three different interfaces that can be used by cluster administrators to use different capabilities within the cluster.

The container networking interface

Kubernetes has a default networking provider, kubenet, which is limited in capability. kubenet only supports 50 nodes per cluster, which obviously cannot meet any requirements of large-scale deployment. Meanwhile, Kubernetes leverages a Container Networking Interface (CNI) as a common interface between the network providers and Kubernetes' networking components to support network communication in a cluster with a large scale. Currently, the supported providers include Calico, Flannel, kube-router and so on.

The container storage interface

Kubernetes introduced the container storage interface in v1.13. Before 1.13, new volume plugins were part of the core Kubernetes code. The container storage interface provides an interface for exposing arbitrary blocks and file storage to Kubernetes. Cloud providers can expose advanced filesystems to Kubernetes by using CSI plugins. Plugins such as MapR and Snapshot are popular among cluster administrators.

The container runtime interface

At the lowest level of Kubernetes, container runtimes ensure containers start, work, and stop. The most popular container runtime is Docker. The container runtime interface gives cluster administrators the ability to use other container runtimes, such as frakti, rktlet, and cri-o.
