Cloud deployment with Azure

In this section, you will learn how to deploy Neo4j to a Linux VM hosted on Azure. Azure has wizards to guide you, but we will be using Command-line Interface (CLI) tools for our setup. If CLI tools are not installed on the system, you can install them using the Node package manager with the following command:

npm install azure-cli

When the tools are installed, we open a terminal, type azure, and we are greeted with cool ASCII art and some common commands. Now, to create our new Linux VM on Azure, we need the following information:

You can now create the Linux VM with the following command in the terminal:

azure vm create myDNS  z12k89b3b3w66g78t94rvd5b73dsrd23__Ubuntu-12_04_1-LTS-amd64-server-20140618-en-us-50GB username -e -l "West US"

In this command, username is the default user account that will be created whose username is specified later. The -e flag enables SSH on the default port 22. The -l flag permits specifying the region where the VM will be deployed. Now we have the VM created and we can easily access it with SSH.

ssh [email protected]

Since we are using an Ubuntu instance, we will install Neo4j using the Debian repository by performing the following steps:

If we need to access Neo4j from external applications or servers, we need to configure the Neo4j properties accordingly by performing the following steps:

If the server was already started, we need to restart it with the following command:

sudo /etc/init.d/neo4j-service restart

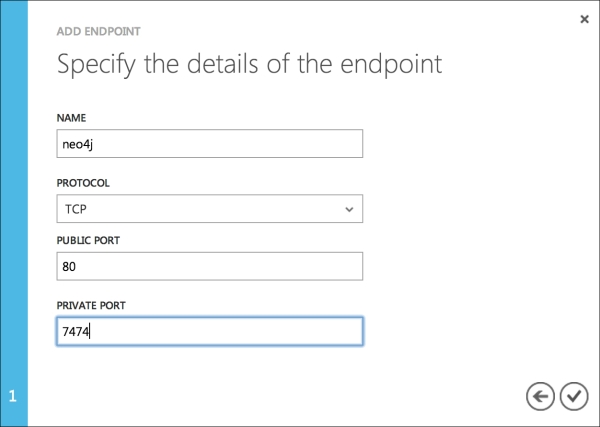

We will now navigate to the Azure portal and the port that Neo4j runs on (7474 by default) has to be opened if the server is intended to be used as a database server. In this case, we map the 7474 port with the 80 port so that the port need not be specified with the requests. We will be using the add new endpoint function of Azure for this, as shown below:

In order to test whether our installed application has successfully deployed, we can test it with the following call:

curl http://myDNS.cloudapp.net

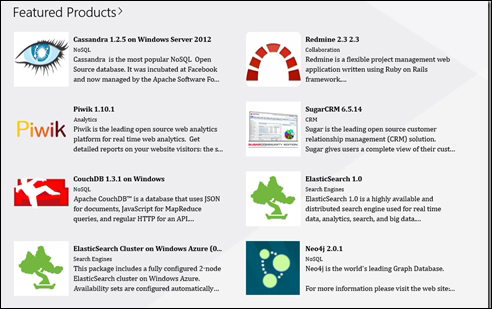

If it works, we have successfully set up Neo4j on Azure. However, the fun does not end there. If your Azure subscription gives you access to apps for the Azure store, then you will find that Neo4j has been included as an app there. So, the first thing you need to do is install Apps for Azure.

Search and select the latest version of Neo4j that is available in the store and then click on Deploy To Cloud in the screen that appears. We then need to select the data center and provide our Windows Azure Subscription details in the form of our publishsettings file.

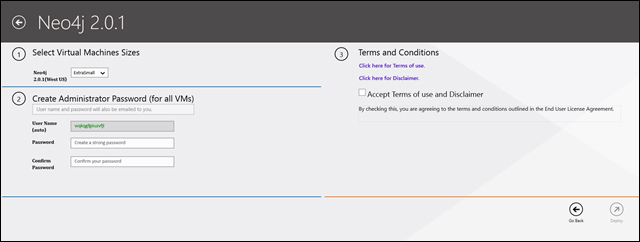

We then select the size of our VM and specify a password for the administrator that will be mailed after the completion of the deployment.

Next, once the deployment completes, you can RDP into the VM using the admin credentials from http://manage.windowsazure.com. Similar to the previous process, if we want our server to be accessible from external hosts, we will need to add the following line to the neo4j-server.properties file:

org.neo4j.server.webserver.address = 0.0.0.0
