Using page templates

We will be adding the JSF template to the SharedComponents ViewController project that we developed in the Breaking up the application in multiple workspaces recipe in this chapter.

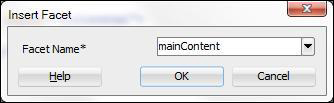

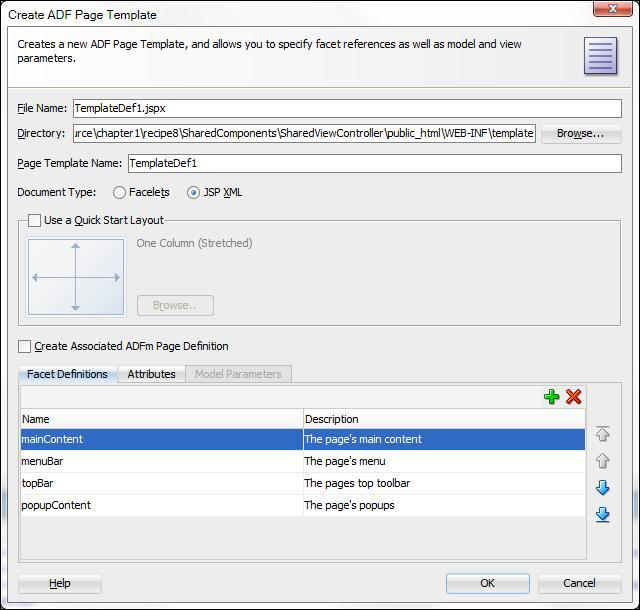

When the template is created, there is no layout information in it, so we have to add it ourselves. We do this by using a variety of layout components to arrange the contained UI. Also, notice the usage of the af:facetRef component. It is being used to reference a template facet in the specific place within the layout content. The facet is then available to you when you create a JSF page from the template. This will become obvious when we generate a JSF page from the template. Note that each Facet can only be added once to the template.

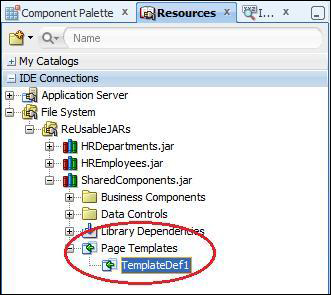

So, how do you use the JSF page template? Since we have created the template in a SharedComponents project, we will first need to deploy the project to an ADF Library JAR. Then we will be able to use it from other consuming projects. This was explained in the Breaking up the application in multiple workspaces recipe, earlier in this chapter. When you do so, the template will be visible to all consuming projects, as shown in the following screenshot:

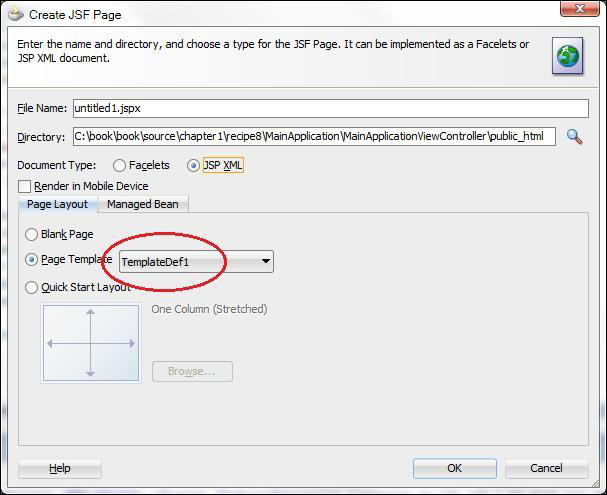

Once the ADF Library JAR containing the template is added to the consuming project, you can see and select the template when you create a new JSF page in the Create JSF Page dialog. The template introduced in this recipe is shown in the following screenshot:

The XML source code that is generated for a JSF page created from this template will look similar to the following code snippet:

<f:view>
  <af:document id="d1" title="Test">
    <af:pageTemplate viewId="/WEB-INF/templates/TemplateDef1.jspx" id="pt1">
      <f:facet name="mainContent"/>
      <f:facet name="menuBar"/>
      <f:facet name="topBar"/>
      <f:facet name="bottomBar"/>
      <f:facet name="popupContent"/>
    </af:pageTemplate>
  </af:document>
</f:view>

You can see in the listing that the page references the template via the af:pageTemplate tag. The template facets that you have defined are available so you can enter the page-specific UI content. After adding an af:menuBar to the menuBar facet and some af:commandToolbarButton components to the topBar facet, the JSF page could look similar to the following code:

<f:view>
  <af:document id="d1" title="Test">
    <af:pageTemplate viewId="/WEB-INF/templates/TemplateDef1.jspx" id="pt1">
      <f:facet name="mainContent"/>
      <f:facet name="menuBar">
        <af:menuBar id="mb1">
          <af:menu text="File" id="m1">
            <af:commandMenuItem text="Save" id="cmi1"icon="/images/filesave.png"/>
            <af:commandMenuItem text="Action" id="cmi2"icon="/images/action.png"/>
            <af:commandMenuItem text="Mail" id="cmi3"icon="/images/envelope.png"/>
            <af:commandMenuItem text="Print" id="cmi4"icon="/images/print.png"/>
          </af:menu>
        </af:menuBar>
      </f:facet>
      <f:facet name="topBar">
        <af:group id="g1">
          <af:commandToolbarButton id="ctb1" shortDesc="Save"icon="/images/filesave.png"/>
          <af:commandToolbarButton id="ctb2" shortDesc="Action"icon="/images/action.png"/>
          <af:commandToolbarButton id="ctb3" shortDesc="Mail"icon="/images/envelope.png"/>
          <af:commandToolbarButton id="ctb4" shortDesc="Print"icon="/images/print.png"/>
        </af:group>
      </f:facet>
      <f:facet name="popupContent"/>
    </af:pageTemplate>
  </af:document>
</f:view>

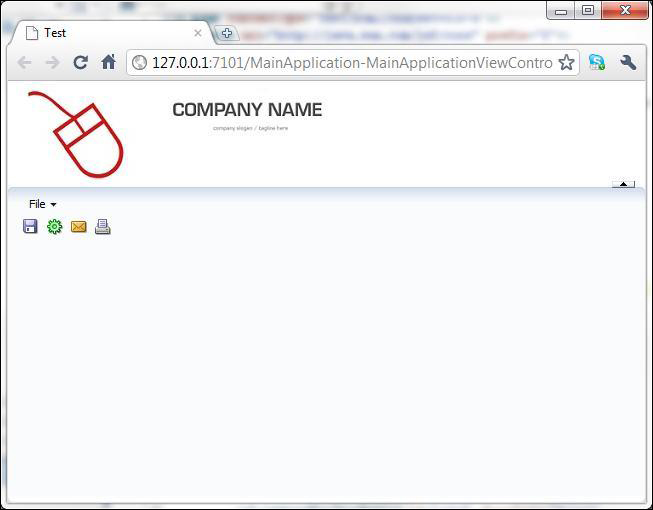

Running the page in JDeveloper will produce the following:

Although adding a Form component to a template is not recommended practice, this is not a problem for the template created in this recipe, since we will not be using it for the creation of page fragments. Using a template that contains a Form component to create page fragments will result in a problem when a consuming page already contains a Form component itself. The template developed in this recipe will not be used for page fragments. It was developed specifically to be used along with the generic backing bean actions framework explained in the Using a generic backing bean actions framework recipe in this chapter.
