Customizing ArcGIS for Desktop

In this section, we will discuss the benefits of customizing ArcGIS. When a particular requirement or feature is not available in ArcGIS, we can actually extend the ArcGIS functionality to do that for us. In this book, we will explain two different approaches for deploying ArcGIS customization respectively: add-ins and extending ArcObjects. You will need the ArcObjects SDK to start the development. There are many other ways for customizing ArcGIS, including user interface customization using Visual Basic for Applications (VBA), modeling and scripting using Python, and building standalone applications using ArcGIS Engine. In this book, we will use the add-ins and extending ArcObjects method.

ArcGIS for Desktop comes with great set of built-in tools that can help you solve interesting mapping problems. However, there comes a time where your problem is a complex one. This is where you might need to extend and customize the functionality of ArcGIS to provide a suitable solution to your problem. The examples in this book require customizations to tackle them. In this section, we discuss the different customization approaches to set up our development environment. Another reason to extend ArcGIS, for example, a certain functionality, might be available in ArcGIS, but you need to perform 10 or 15 steps to achieve it, and customizing the product can group and automate these steps so that you can default all of them in a few clicks.

The first attempted approach to providing customization for ArcGIS was through VBA. This is similar to the macroscripts in Microsoft Word and Excel. You could write an application and save it in the map document and later share this document, and the person running your document could use your application. It was a convenient approach for sharing mapping, but with many problems. The main problem was the security. The document might contain malicious code that would execute with user privileges and can potentially harm the user. That is why this approach was discouraged and has been replaced with ArcGIS add-ins and the extensions building approach. Today, you can still develop using VBA by installing the VBA compatibility setup.

Customizing ArcGIS for Desktop requires that you either build add-ins or use the classical Dynamic Link Library (DLL) approach and register it with ArcGIS for it to work. Both approaches use ArcObjects as the underlying technology, however, the final building technique is different.

These built approaches are not share-friendly, however, Esri came up with a beautiful solution and platform for sharing, and that is ArcGIS Online. That discussion though should be an entirely different book.

The system requirements of ArcObjects

In order to customize ArcGIS for Desktop, we will require installing some more components. Microsoft Visual Studio, which will be our Integrated Development Environment (IDE). This is where we will be writing code in .NET to customize ArcGIS.

The second component that we will also need to install is ArcObjects SDK for .NET, which will add the software development kit and Visual Studio plugins to write Desktop applications.

Note

IDE is a software that allows computer programmers to write code in order to develop software. The IDE usually consists of a source code editor, syntax highlighter, compiler, builder, and a debugger, which help the programmer in the software development process.

It is important to install ArcObjects SDK after completely installing Visual Studio so that ArcObjects will be able to install plugins on top of the Visual Studio IDE.

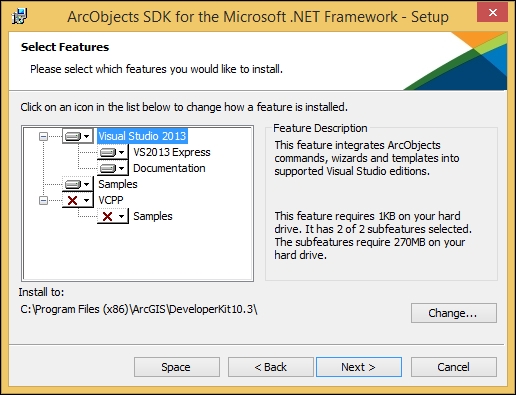

In this book, we will be using Microsoft Visual Studio 2013 Express for Windows Desktop as our IDE. The software can be downloaded for free from the official Microsoft website at http://bit.ly/b04748_vs2013exp. This is quite a big download and it will take some time depending on your Internet connection. When you install ArcObjects SDK, the setup will detect your current Visual Studio and install the plugins accordingly, as shown in the following screenshot:

You can also use Visual Studio 2012 with ArcObjects SDK 10.3. Just make sure to install the Visual Studio before you install the ArcObjects SDK for .NET. For a complete list of system requirements for ArcObjects SDK 10.3, follow http://bit.ly/b04748_ao103sysreq.

If you are programming under different system configurations, take a look at the following table to make sure you comply with the system requirement:

Product version	Supported IDE	Reference
ArcObjects SDK 10.3	VS2013, VS2012	http://bit.ly/b04748_ao103sysreq
ArcObjects SDK 10.2.x	VS2012, VS2010	http://bit.ly/b04748_ao102sysreq
ArcObjects SDK 10.1	VS2010	http://bit.ly/b04748_ao101sysreq
ArcObjects SDK 10.0	VS2008, VS2010	http://bit.ly/b04748_ao10sysreq
ArcObjects SDK 9.3.x	VS2008, VS2010	N/A
ArcObjects SDK 9.2.x	VS2005, VS2008	N/A

I couldn't find official online references to support my claims for 9.3.x and 9.2.x, but from a personal experience, I did use ArcObjects with 2005 and 2008 on both the 9.2 and 9.3 systems and it was working flawlessly.
