Debugging programs that use CMSIS-RTOS


Using Keil's ULINK, we can gather and display general information about system resources while debugging our program.

How to do it…

  1. Clone the RTXBlinky project that we described earlier in this chapter.

  2. Select ProjectOptions. Under the Debug tab, select Settings.

  3. In the Cortex-M Target Driver Setup dialog, use the Debug tab to select the Serial Wire (SW) Communications protocol:

  4. Still in the Cortex-M Target Driver Setup dialog, use the Trace tab to set the Core Clock frequency (168.0 MHz) and check Trace Enable:

  5. Download and run the program.

  6. Debug the program by selecting Debug Start/Stop Debug Session (Ctrl+F5).

  7. Select DebugRun (F5) to run the program.

  8. Select DebugOS SupportSystem and Thread Viewer.

    Tip

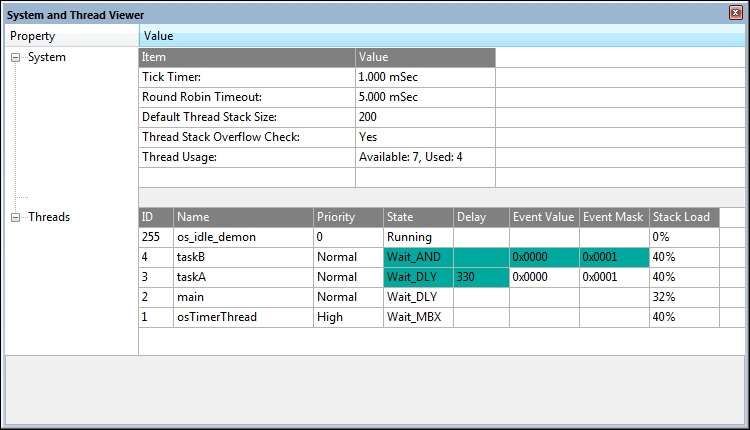

    The cells that are highlighted in the previous screenshot are updated in real time as the program is running.

  9. Select DebugOS SupportEvent Viewer. The cells that are highlighted in the following screenshot are updated in real time as the program...
