Location-based call admission control provides a mechanism for controlling the number of calls allowed between two locations. Controlling the number of calls between locations can prevent over saturating IP WAN links and degrading overall call quality.
To complete this recipe successfully, it is important to have a list of locations and the available bandwidth for calls and videos per location.
To implement location-based call admission control, perform the following:
Add a new Location for each location as appropriate (System | Location).
Click Add New to add a new location.
Type in an appropriate name.
Specify the Audio Bandwidth available to the location or select Unlimited.

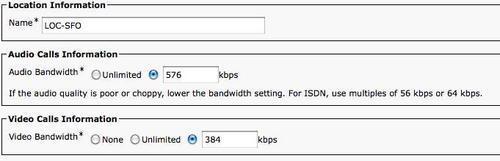

Specify the Video Bandwidth available to the location, or select either Unlimited or None depending on the environment. The given setting is shown in the following screenshot:
Click Save.
Repeat this process for each location to be added.
Configure...
