Google Web Toolkit 2 Application Development Cookbook
By :
Ext GWT is a Java UI component library developed by Ext JS, Inc. for building rich web applications with the Google Web Toolkit.
Its important features include the following:
High performance, customizable UI components, panels, windows, menus, and so on
Standard CSS support
Well-documented source code
Native GWT solution without any external JavaScript or third-party libraries
Full remote procedure support using GWT RPC, JSON, and XML
Support for Java 1.5 features, including generics, enums, and varargs
Commercial and open source licenses available
Download Ext GWT SDK from http://www.sencha.com/products/gwt/download.php.
The file gxt-2.1.1-gwt2.zip is the EXT GWT 2.1.1 PUBLIC RELEASE for GWT 2.
Extract gxt-2.1.1-gwt2.zip to C:\Program Files\ or any other desired location.
The next step is to add the Ext GWT library in the Sales Processing System project. To do this:

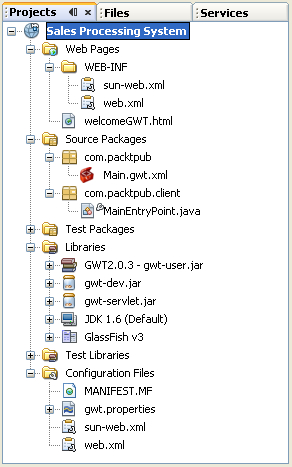

Right-click on Libraries under the Project tab, and click on Add Jar/Folder
Open the gxt.jar file from C:\Program Files\gxt-2.1.1-gwt2\gxt-2.1.1(or from the location to which the file was extracted), as shown in the following three screenshots:
![]() |
![]() |
![]() |
The next step is to place the Ext GWT resources folder containing the CSS, images, and others into the web folder of the Sales Processing System project.
Copy the folder resources from C:\Program Files\gxt-2.1.1-gwt2\gxt-2.1.1(or from the location to which the file was extracted)
![]() |

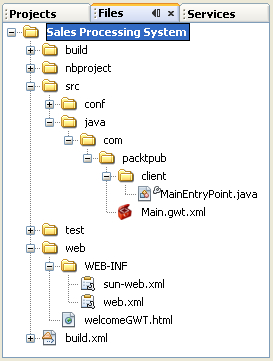

Paste it in the web folder by going to the Files tab, as shown in the following screenshot:
![]() |
Now, we need to modify the GWT module:
Open Main.gwt.xml from Source Packages | com.packtpub
Expand the General node:
![]() |
Click on Add and write the module name com.extjs.gxt.ui.GXT:
![]() |
Save and close Main.gwt.xml
Modify welcomeGWT.html to add a link to the CSS in the /web/resources/css folder
Open welcomeGWT.html
Add the following line just above the</head> tag:
<link rel="stylesheet" type="text/css" href="resources/css/gxt-all.css" />
Now, we are ready to start developing the GWT application
Let's explain how these steps allow us to complete the task or solve the problem.
Adding the GXT JAR file allows us to use the widget library to create the user interfaces. Some important widgets used in this book from this library are Grids, Panels, Tabs, Layouts, Forms, Toolbar, Menu bar, Fields, Buttons, and so on.
The resources folder in the GXT contains the required CSS used in the widget library, images, and so on. By placing this folder in our application, we are being able to create nice user interfaces even without using any new CSS or images, though we can do so if required.
Google Web Toolkit Overview, available at http://code.google.com/webtoolkit/overview.html
Google Web Toolkit (GWT), by Mark Volkmann, available at http://java.ociweb.com/mark/other-presentations/GWT.pdf
Google Web Toolkit, available at http://en.wikipedia.org/wiki/Google_Web_Toolkit
GlassFish Wiki, available at http://wiki.glassfish.java.net
About MySQL, available at http://www.mysql.com/about
NetBeans IDE 6.8 Release Information, available at http://netbeans.org/community/releases/68
GWT4NB, available at https://gwt4nb.dev.java.net
Ext GWT, available at http://www.sencha.com/products/gwt/
