Chapter 4: Computer System Components

Exercise 1

Create a circuit implementation of a NAND gate using two CMOS transistor pairs. Unlike NPN transistor gate circuits, no resistors are required for this circuit.

Answer

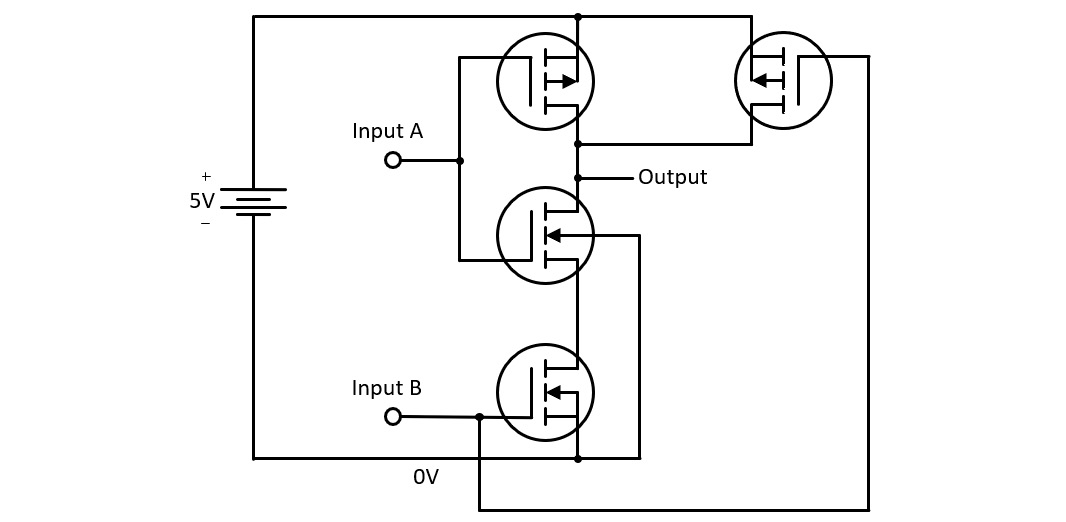

The diagram for this circuit is shown here:

Image 3

Exercise 2

A 16-gigabit DRAM integrated circuit has 2 bank group selection inputs, 2 bank selection inputs, and 17 row address inputs. How many bits are in each row of a bank in this device?

Answer

The DRAM circuit contains 16 gigabits = 16 × 230 bits.

The number of address bits is 2 bank group bits + 2 bank bits + 17 row address bits = 21 bits.

The row dimension of each bank is therefore (16 × 230) ÷ 221 = 8,192 bits.
